Wiring examples of how to build active and passive multi-channel  linear preamplifier using DACT components like the CT101 line stage module, CT2 stepped audio attenuators and our Dual Connect solid gold signal wires. The application note covers both 6-channel and 8-channel passive and active preamplifiers for Home Theater and A/V Audio. The designs feature master volume control and volume controls for individual channel adjustment.
Multichannel-preamps
DACT logo

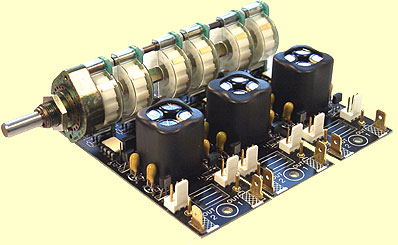

An active 6-channel (AV Audio) preamp using DACT CT101 and DACT CT2 attenuator

Picture above: 6-channel active preamplifier using 3 pcs. CT101 line stages and a 6-deck CT2 attenuator as master voilume control (individual channel controls not shown).

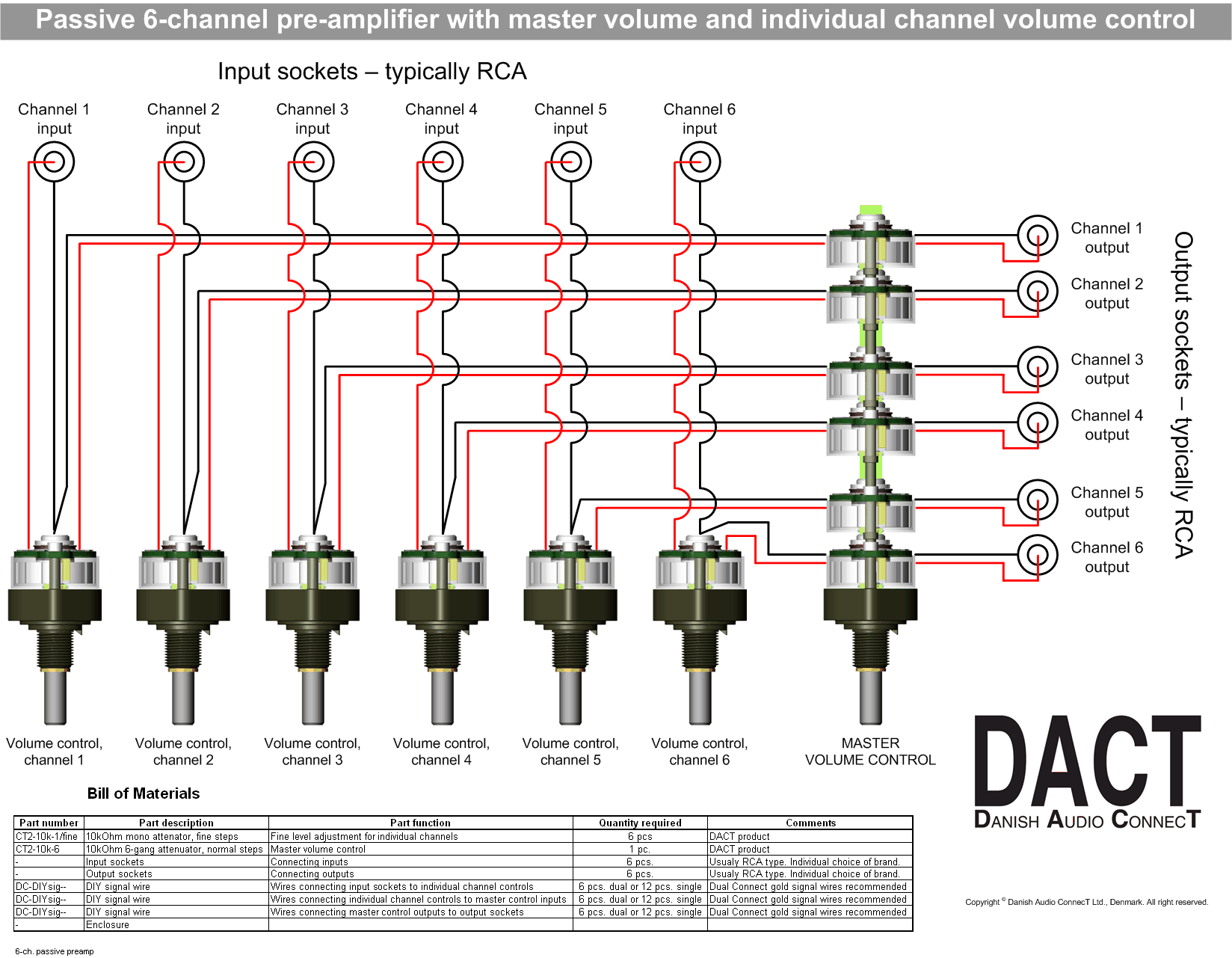

6-channel-passive-preamp


Click here to view a larger picture of the above schematic (168KB GIF)

Click here to view a PDF version of the above schematic (325KB)

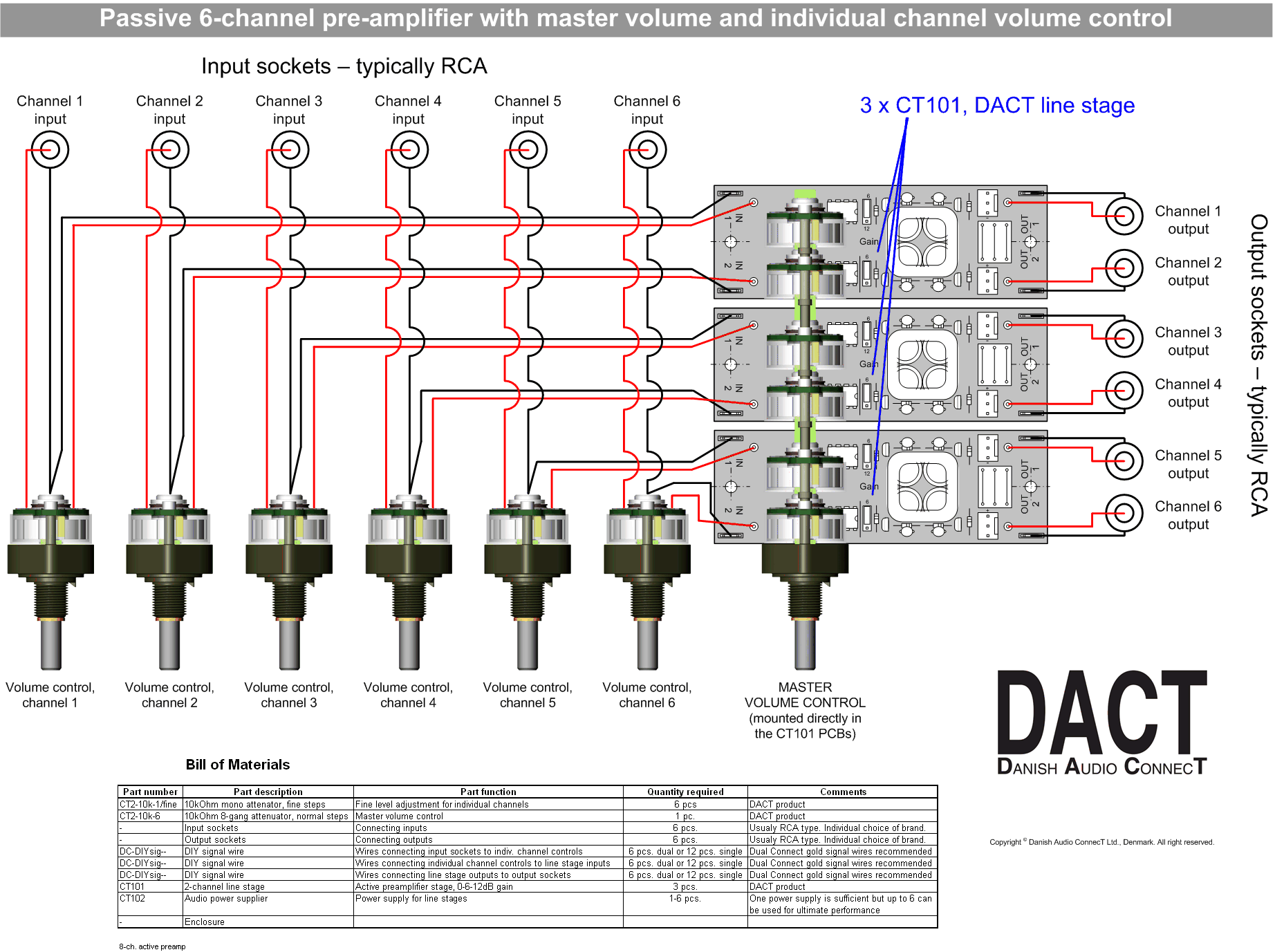

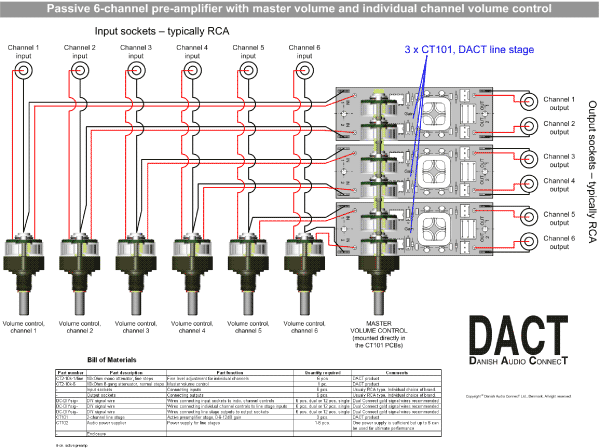

6-channel-active-preamp


Click here to view a larger picture of the above schematic (222KB GIF)

Click here to view a PDF version of the above schematic (395KB)

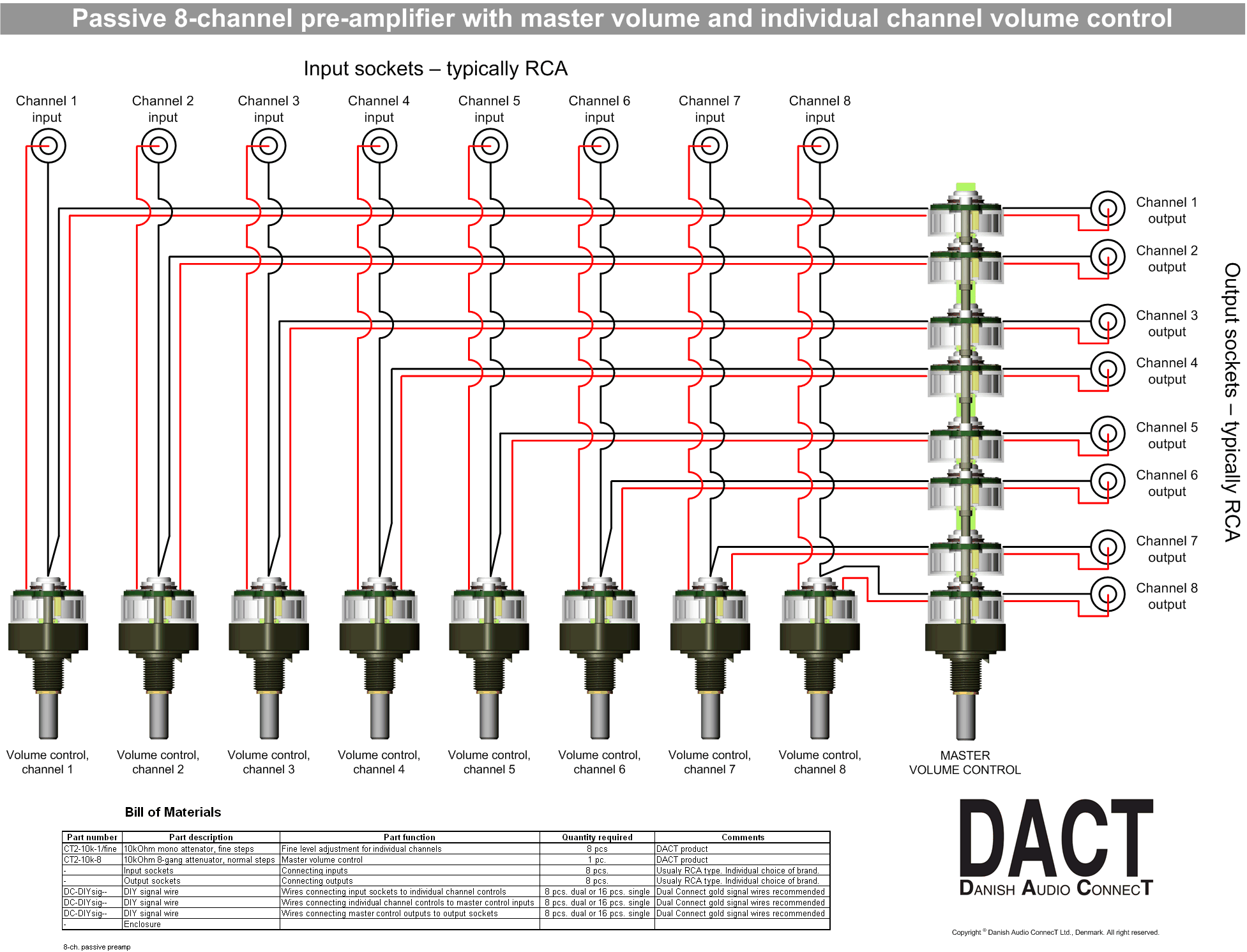

8-channel-passive-preamp


Click here to view a larger picture of the above schematic (227KB GIF)

Click here to view a PDF version of the above schematic (478KB)

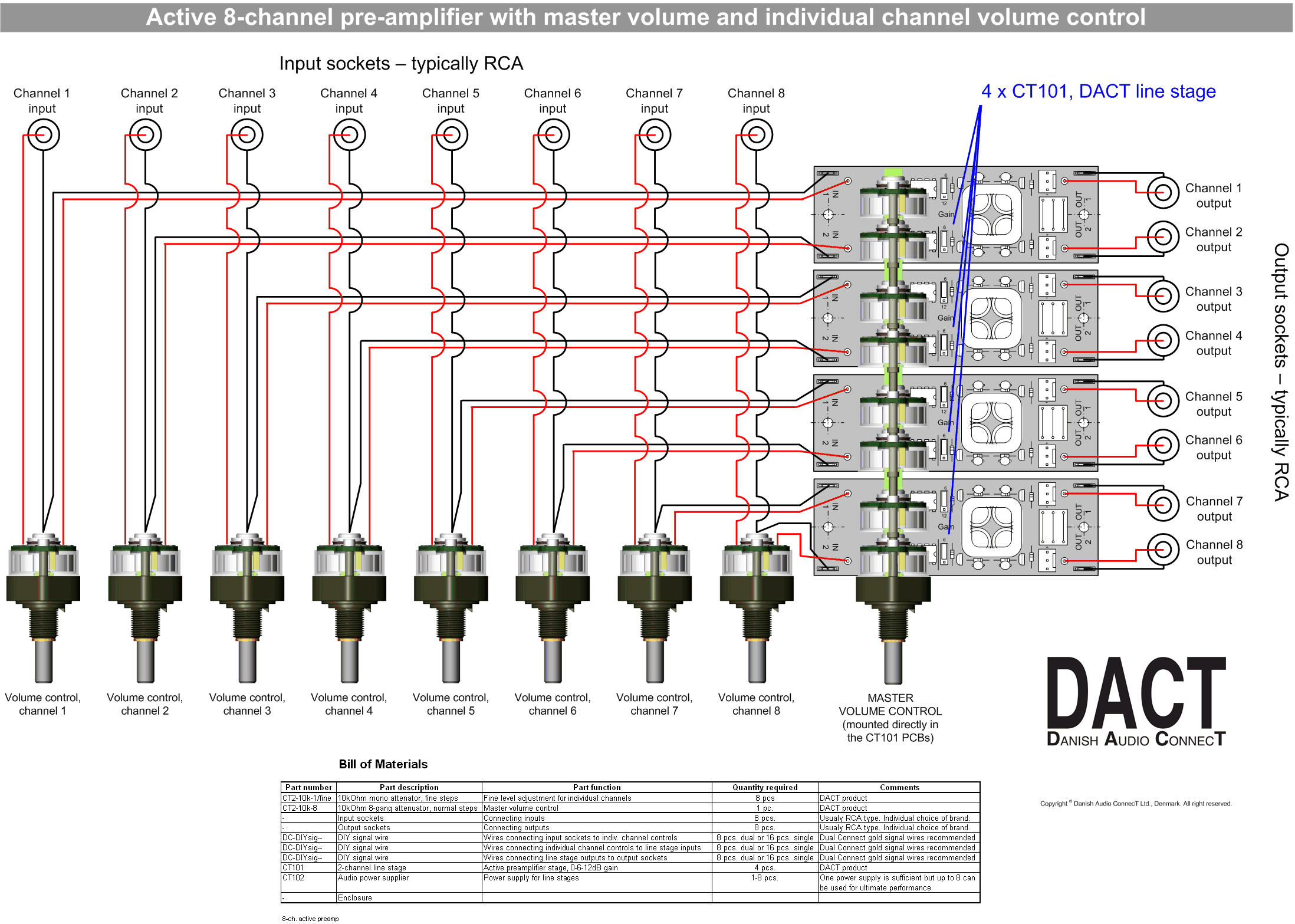

8-channel-active-preamp


Click here to view a larger picture of the above schematic (297KB GIF)

Click here to view a PDF version of the above schematic (473KB)
